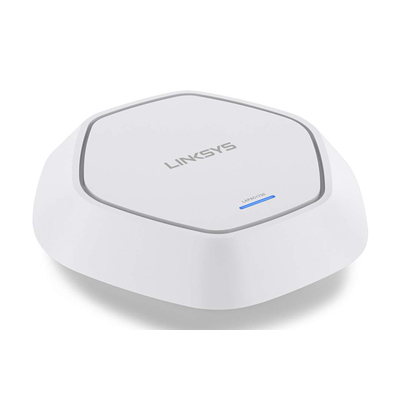

Linksys Business AC1750 Dual-Band Access Point (LAPAC1750)

Description

Tech Specs

Model Name: LAPAC1750

Network Standards:

• IEEE 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac
• WMM – Wireless Multimedia Prioritization
• Power over Ethernet Plus (PoE+) IEEE 802.3at

Radio Frequency Bands: 2.4GHz and 5GHz (Concurrent)

Ports: 1 x Gigabit LAN Port with IEEE 802.3at PoE+ / 1 x 12V/1.5A power port

LEDs: 1 x System LED

Buttons: Reset Button

MIMO: 3×3

Antenna Type: Internal PCBA Antenna

Antenna Gain: 1.7dBi @2.4G, 1.9dBi @5G

RF Transmit Power: High Power PA

Radio Frequency Channels:

• 2.412 to 2.462 GHz, 11 channels
• 5.180 to 5.240 GHz: 4 channels
• 5.745 to 5.825 GHz: 5 channels

Maximum Power Consumption: 15W

Mounting: Ceiling / Wall

Security Features:

• Multiple SSIDs (16)
• SSID Broadcast
• SSID to VLAN Mapping
• Wi-Fi Protected Access (WPA/WPA Mixed, WPA2) Personal and Enterprise
• RADIUS
• Mac-Based Access Control
• Rogue AP Detection
• 802.1X Supplicant
• Channel Isolation

Security Lock: Kensington Security Lock

Quality Of Service: WMM / Bandwidth Management

Management Interface: SNMP / HTTP / HTTPS

Regulatory Compliance: FCC, CE, IC

Advanced Features:

• Wireless Distribution System (WDS)
• Workgroup Bridge
• IGMP/MLD Snooping
• Scheduler
• Band Steering
• IPv6 Interface
• Dual Image Support
• Captive Portal
• Clustering

Network Diagnostics: Log, Ping, Packet Capture

Warranty and Support: Limited Lifetime Warranty

Centralized Management System: Clustering
