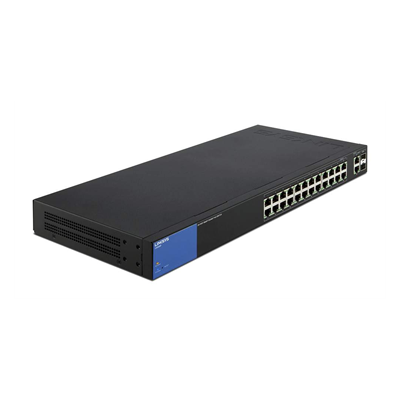

Linksys Business 24-Port Gigabit PoE+ (192W) Smart Managed Switch + 2x Gigabit SFP/RJ45 Combo Ports (LGS326P)

Linksys Business 24-Port Gigabit PoE+ (192W) Smart Managed Switch + 2x Gigabit SFP/RJ45 Combo Ports (LGS326P)

Designed for business-class management, security, speed, and quality of service.

  • Integrated Power Over Ethernet Plus
  • Proven Performance and Reliability
  • Easy Configuration and Management
  • Advanced Network Security
  • IPv6 Support
  • Enhanced QoS
  • Enhanced Security
  • Meets EEE (Energy Efficient Ethernet) 802.3az standard



*3 Years Warranty

Categories: , Tags: , , , , ,

Description

Tech Specs

Model Name: LGS326P

Network Standards:

  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3z
  • IEEE 802.3x
  • IEEE 802.3ad
  • IEEE 802.3az
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.1d
  • IEEE 802.1q/p
  • IEEE 802.1X



Number of Ports with PoE+ Support: 24

Memory: 128 MB

LEDs: System (blue), Link/Act/PoE (green/green)

System Power Consumption without PoE+: 110V:28.58W, 220V:26.67W

Forwarding Rate: 38.69 Mpps

Switching Capacity: 52 Gbps

MAC Address Table Size: 8K

Jumbo Frame (FE, GE): 9K

Fans: Two,8,200 rpm

Spanning Tree: IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree

Link Aggregation: IEEE 802.3ad LACP, up to 4 groups with up to 8 ports per group

VLAN: Port-based and 802.1q tag-based VLANs, Management VLAN, Guest VLAN support, Dynamic VLAN assignment via Radius server with 802.1x client authentication

Number of VLANs Supported: 128 active VLANs (4,096 range)

Auto Voice VLAN: VLAN Voice traffic is automatically assigned by OUI to a voice-specific VLAN and treated with appropriate levels

IGMP Snooping: IGMP (v1/v2/v3) snooping provides for fast client joins and leaves of multicast streams and limits bandwidth-intensive video traffic to only the requestors; supports 256 multicast groups

HOL Blocking Prevention: Head of line (HOL) blocking prevention

Port Mirroring: Traffic on multiple ports can be mirrored to another port for analysis with a network analyzer

Security Features:

  • 802.1x Radius authentication
  • DHCP snooping
  • IP-MAC binding
  • Port security supports limited dynamic lock and locked MAC address
  • Management access control



Storm Control: Broadcast, flooding, and multicast

Management Interface: HTTP / HTTPS

Other Management: Telnet (Menu CLI), DHCP client, system log, configuration unload and backup via HTTP or TFTP, PING, dual images, SNTP

SNMP: Version 1 / Version 2c

Firmware Upgrade: Web Browser (HTTP/HTTPS) / TFTP

QoS – Class of Service: Port-based, 802.1p priority-based, IPv4/v6 IP DSCP-based

Combo Ports (RJ45 + SFP): 2 combo on ports g25, g26

Copper FE/GE Ports (RJ45): g01–g12, g13-g24

Green Power Mode: EEE+, Short Reach + Energy Detect

QoS – Priority Levels: 4 hardware queues

QoS – Scheduling: Priority queuing and weighted round robin (WRR)

Total System Ports: 26GE
